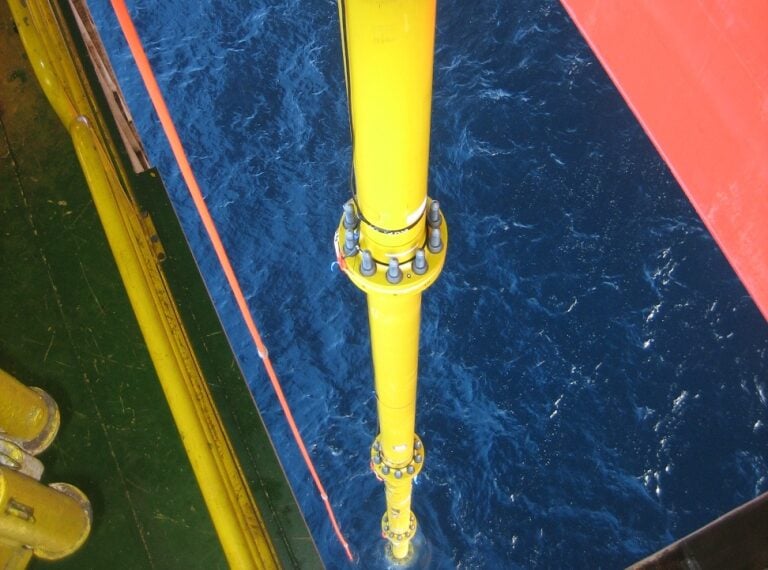

High-pressure drilling risers designed to your requirements
We have developed several large-diameter flange designs for high-pressure riser applications, including shallow water jack-up and deepwater dry-tree drilling risers.
All our designs are independently verified to comply with the requirements of API RP 2RD or ISO 13628‑7 in terms of material utilisation limits and sealing capacity.
Optimised designs are available, with enhanced bending capacity and sealing performance in dynamically loaded applications.
Since 2008, our proprietary flange designs have been used extensively in multiple North Sea drilling risers and in applications involving working pressures of up to 15,000psi .
Drawing on our experience, we can offer several design features for faster running and reliable make-up:
- Full 3D finite element analysis (FEA)
- Fatigue qualification testing and FEA correlation
- Fastener and bolt tensioning designs for easy spidering and faster rig-floor handling
- Internal handling grooves for remotely operated running tool
- A range of metal sealing options based on industry standard and wellhead bore seals
